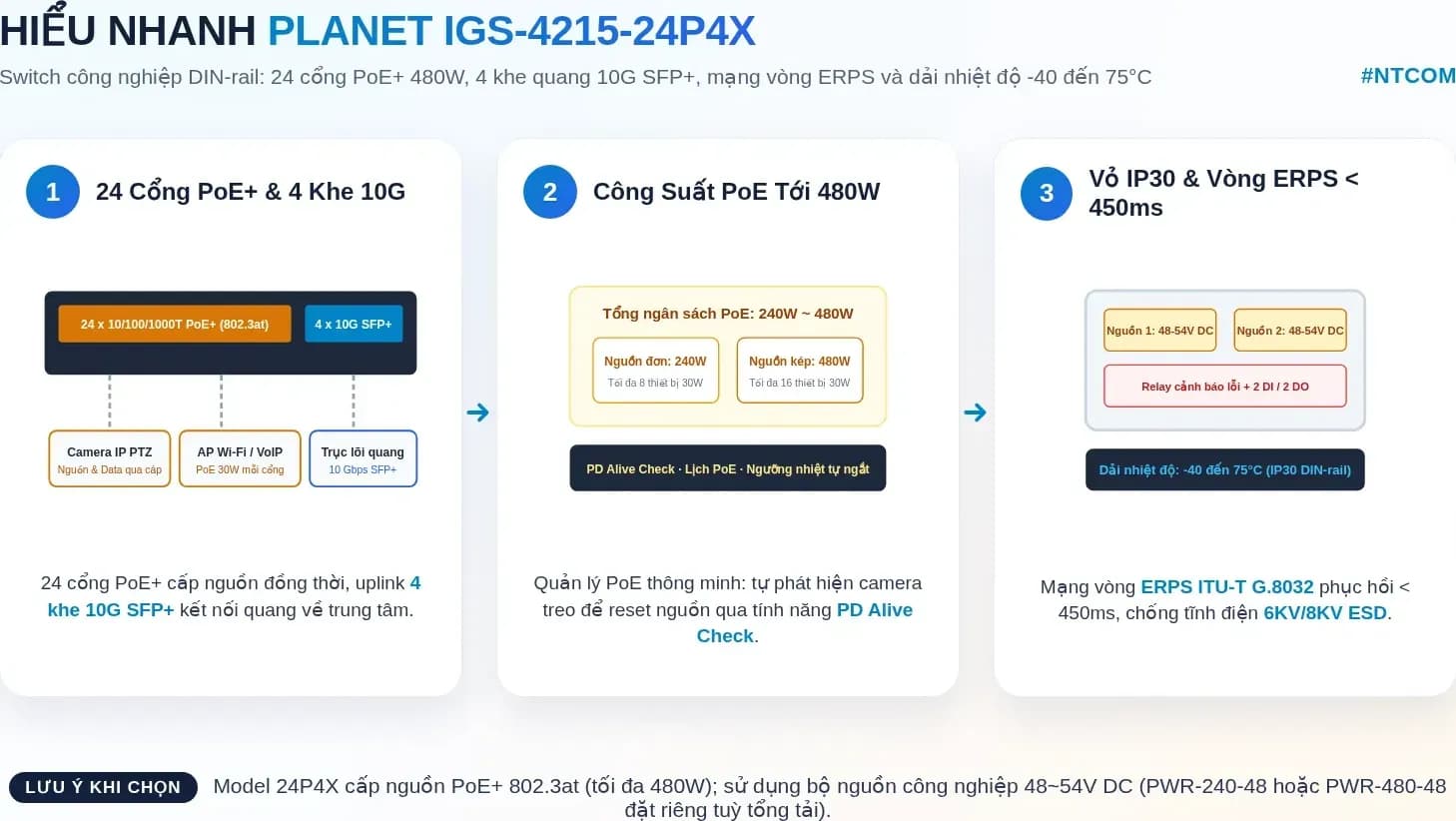

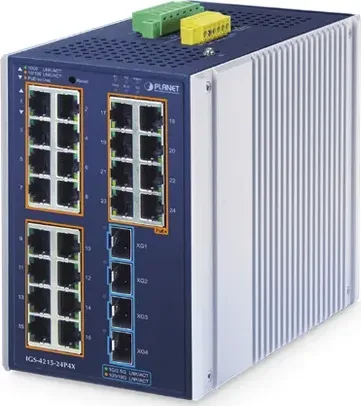

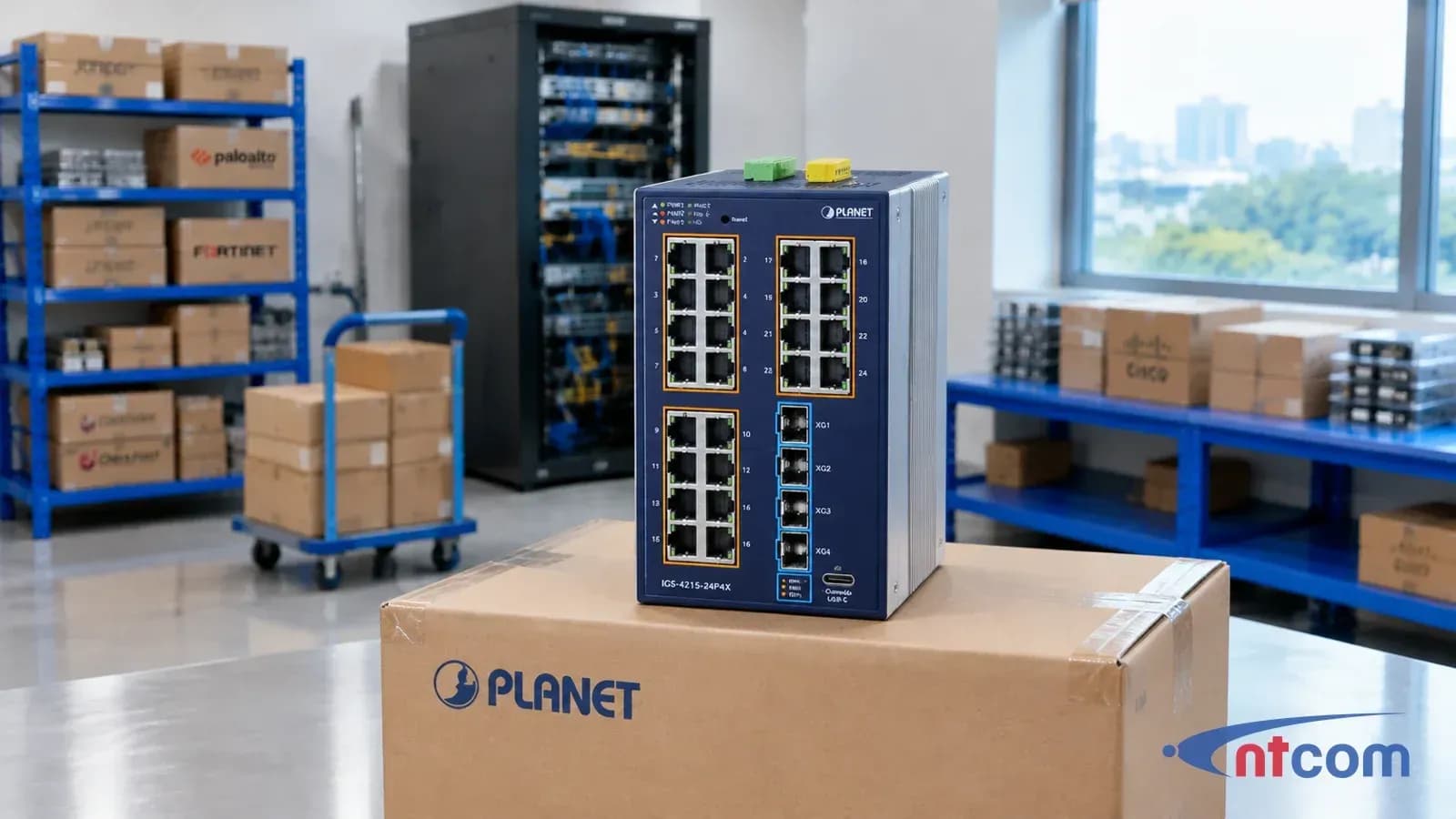

PLANET IGS-4215-24P4X switch công nghiệp 24 cổng PoE+ 4 10G SFP+

Cổng đồng RJ45

24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24)

Cổng cấp PoE

24 ports with 802.3at PoE+ injector function (Ports 1 to 24)

Cổng SFP+

4 10GBASE-SR/LR SFP+ interfaces (Port XG1 to Port XG4); Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceivers

Cổng console

1 x USB Type C to RS232 serial port (115200,8, N, 1)

Nút Reset

< 5 sec: System reboot; > 5 sec: Factory default

Đầu nối nguồn / DI/DO

Removable 6-pin terminal block; Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2; Removable 6-pin terminal block for DI/DO interface; Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND

Cảnh báo (relay)

One relay output for power failure. Alarm relay current carry ability: 1A @ 24V AC

Ngõ vào số (DI)

2 digital input (DI): Level 0: -24V~2.1V (±0.1V); Level 1: 2.1V~24V (±0.1V); Input load to 24V DC, 10mA max.

Ngõ ra số (DO)

2 digital output (DO): Open collector to 24V DC, 100mA max.

Nguồn điện vào

48~54V DC, 12A (max.)

Công suất tiêu thụ / toả nhiệt

DC (system on); Max. 8.5 watts / 28.9BTU; DC (Full loading); Max. 544 watts/1,855BTU

Kích thước (R x S x C)

96 x 135 x 152 mm

Khối lượng

1,840g

Vỏ máy

IP30 aluminum case

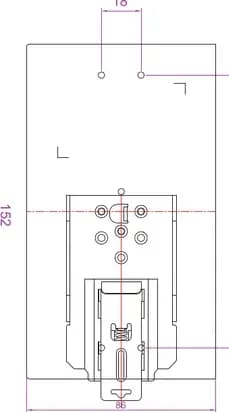

Lắp đặt

DIN-rail kit and wall-mount ear

Chống tĩnh điện (ESD)

Contact Discharge 6KV DC; Air Discharge 8KV DC

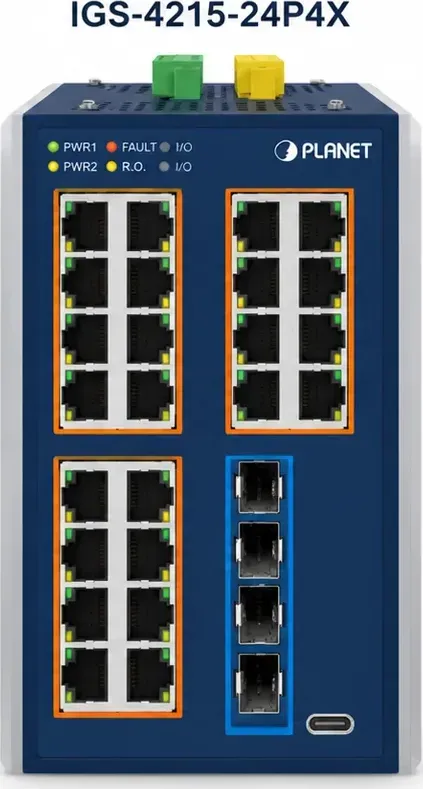

Đèn LED

System: Power 1 (Green); Power 2 (Green); Alarm (Red); Ring (Green); R.O.(Green); I/O (Red); Per 10/100/1000T RJ45; 1000 LNK/ACT (Green); 10/100 LNK/ACT (Amber); PoE-in-Use (Amber); Per 10G SFP Interface: 1G/2.5G LNK/ACT (Green); 100/10G LNK/ACT (Amber)

Kiến trúc chuyển mạch

Store-and-Forward

Băng thông chuyển mạch

128Gbps/non-blocking

Thông lượng (gói 64 byte)

95.23Mpps @64 bytes

Bảng địa chỉ MAC

32K entries

Bộ đệm dữ liệu dùng chung

12Mbits

Điều khiển luồng

IEEE 802.3x pause frame for full duplex; Back pressure for half duplex

Khung Jumbo

12 Kbytes

Chuẩn PoE

IEEE 802.3at; Power over Ethernet Plus/PSE

Kiểu cấp nguồn PoE

End-span

Sơ đồ chân cấp nguồn

802.3at PoE: End-span:; 1/2(+), 3/6(-)

Công suất PoE mỗi cổng

IEEE 802.3af Standard; Per port 48V~51V DC, max.; 15.4 watts; IEEE 802.3at Standard; Per port 51V~54V DC, max.; 36 watts

Tổng công suất PoE

Single power input: 240W maximum (depending on power input); Dual power input: 480 W maximum @ 60 degree C (depending on power input); Dual power input: 360 W maximum @ 75 degree C (depending on power input); * Dual power input must be the same as DC voltage, like dual 54V.

Số thiết bị PD 30W (802.3at Type 2)

16

Quản lý PoE

PD Alive Check; Scheduled Power Recycling; PoE Schedule; PoE Usage Monitoring; PoE Extension

Chế độ PoE mở rộng

Standard/Legacy/Force

Phát hiện thiết bị PoE còn hoạt động

Có

Khởi động lại nguồn PoE

Yes, daily or predefined schedule

Lịch cấp nguồn PoE

4 schedule profiles

Chế độ PoE khoảng cách xa

Yes, max. up to 250 meters

Nhân bản cổng (mirroring)

TX/RX/Both; Many-to-1 monitor; Up to 4 sessions

VLAN

802.1Q tagged VLAN; 802.1ad Q-in-Q tunneling (VLAN stacking); Voice VLAN; Protocol VLAN; Private VLAN (Protected port); GVRP; Management VLAN; Up to 256 VLAN groups, out of 4094 VLAN IDs

Gộp liên kết

IEEE 802.3ad LACP and static trunk; Supports 8 groups with 8 ports per trunk

Spanning Tree

IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multiple Spanning Tree Protocol (MSTP); STP BPDU Guard, BPDU Filtering and BPDU Forwarding

IGMP Snooping

IPv4 IGMP snooping v2, v3; IGMP Querier; Up to 256 multicast groups

MLD Snooping

IPv6 MLD snooping v2, v3, up to 256 multicast groups

Danh sách điều khiển truy cập (ACL)

IPv4/IPv6 IP-based ACL/MAC-based ACL; IPv4/IPv6 IP-based ACE/MAC-based ACE

Chất lượng dịch vụ (QoS)

8 mapping IDs to 8 level priority queues; - Port number; - 802.1p priority; - DSCP/IP precedence of IPv4/IPv6 packets; Traffic classification based, strict priority and WRR; Ingress/Egress Rate Limit per port bandwidth control

Mạng vòng (Ring)

Supports ERPS, and complies with ITU-T G.8032; Recovery time < 450ms

Giao diện IP

Max. 64 VLAN interfaces

Bảng định tuyến

Max. 32 routing entries

Giao thức định tuyến

IPv4/IPv6 hardware static routing

Danh sách điều khiển truy cập (ACL)

IPv4/IPv6 IP-based ACL/MAC-based ACL; IPv4/IPv6 IP-based ACE/MAC-based ACE; Max. 256 ACL entries

Bảo mật cổng

Built-in RADIUS client to co-operate with RADIUS server; RADIUS/TACACS+ user access authentication

Bảo mật MAC

IP-MAC port binding; MAC filtering; Static MAC address, max. 256 static MAC entries

Bảo mật nâng cao

DHCP Snooping and DHCP Option82; STP BPDU guard, BPDU filtering and BPDU forwarding; DoS attack prevention; ARP inspection; IP source guard

Giao diện quản trị cơ bản

USB to RS232 Console; Web browser; Telnet; SNMP v1, v2c

Giao diện quản trị bảo mật

SSHv2; TLSv1.3; SNMP v3; TLS Post-Quantum Cryptography (PQC)

Quản lý hệ thống

Firmware upgrade by HTTP/TFTP protocol through Ethernet network; Configuration upload/download through HTTP/TFTP; LLDP protocol; SNTP; PLANET Smart Discovery Utility; PLANET NMS, NMSViewerPro and CloudNMS

Quản lý sự kiện

Remote/Local Syslog; System log

SNMP MIB

RFC 1213 MIB-II; RFC 1215 Generic Traps; RFC 1493 Bridge MIB; RFC 2674 Bridge MIB Extensions; RFC 2737 Entity MIB (Version 2); RFC 2819 RMON (1, 2, 3, 9); RFC 2863 Interface Group MIB; RFC 3635 Ethernet-like MIB; RFC 3621 Power Ethernet MIB

Chứng nhận hợp quy

FCC Part 15 Class A, CE

Kiểm tra độ bền cơ học

IEC 60068-2-32 (free fall); IEC 60068-2-27 (shock); IEC 60068-2-6 (vibration)

Tiêu chuẩn tuân thủ

IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX/100BASE-FX; IEEE 802.3z Gigabit SX/LX; IEEE 802.3ab Gigabit 1000BASE-T; IEEE 802.3ae 10Gb/s Ethernet; IEEE 802.3x Flow Control and Back Pressure; IEEE 802.3ad Port Trunk with LACP; IEEE 802.1D Spanning Tree Protocol; IEEE 802.1w Rapid Spanning Tree Protocol; IEEE 802.1s Multiple Spanning Tree Protocol; IEEE 802.1p Class of Service; IEEE 802.1Q VLAN Tagging; IEEE 802.1ab LLDP; IEEE 802.3af Power over Ethernet; IEEE 802.3at Power over Ethernet Plus; IEEE 802.3bt Power over Ethernet Plus Plus; IEEE 802.3az for Energy-Efficient Ethernet; RFC 768 UDP; RFC 783 TFTP; RFC 791 IP; RFC 792 ICMP; RFC 2068 HTTP; RFC 1112 IGMP v1; RFC 2236 IGMP v2; RFC 3376 IGMP v3; RFC 2710 MLD v1; RFC 3810 MLD v2; ITU-T G.8032 ERPS Ring

Nhiệt độ hoạt động

-40 ~ 75 degrees C

Nhiệt độ lưu kho

-40 ~ 85 degrees C

Độ ẩm

5 ~ 95% (non-condensing)
