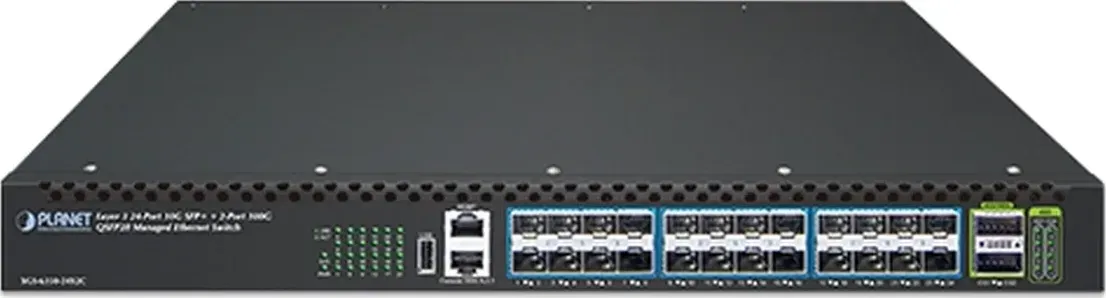

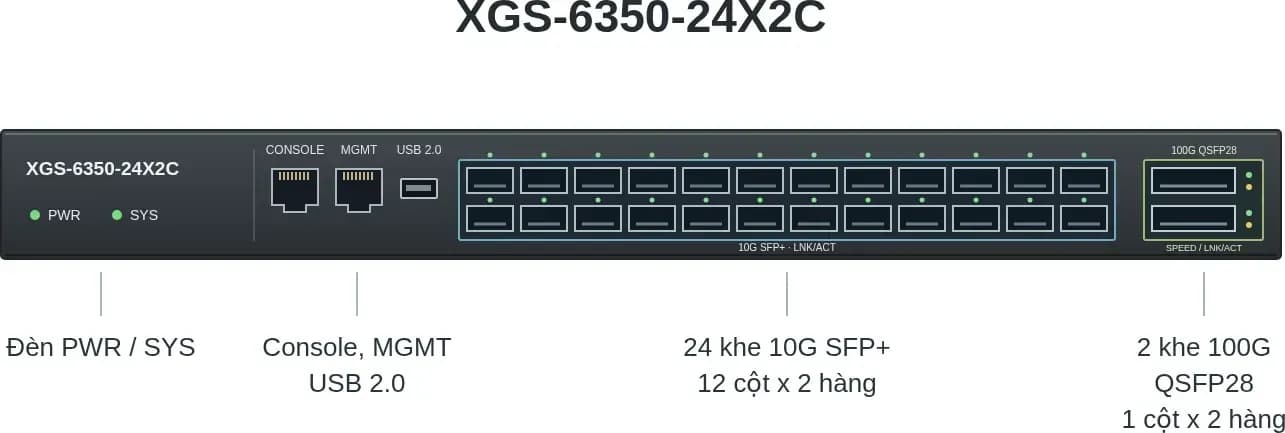

PLANET XGS-6350-24X2C switch Layer 3 24 cổng 10G SFP+ 2 cổng 100G QSFP28

Khe QSFP28

2 with each supporting native 100/40 Gigabit Ethernet and four 10 Gigabit Ethernet interfaces

Khe SFP+

24 10GBASE-SR/LR; SFP+ interfaces Compatible with 1000BASE-SX/LX/BX; SFP transceiver

Cổng console

1 x RJ45-to-DB9 serial port (9600, 8, N, 1)

Cổng quản trị

1 x 10/100/1000BASE-T RJ45 port

Cổng USB

1 x USB 2.0

Kích thước (R x S x C)

442.5 x 300.1 x 44.6 mm; 1U height

Khối lượng

5716g

Công suất tiêu thụ

50.5 watts/172 BTU (maximum)

Nguồn điện vào

AC 100~240V, 50/60Hz

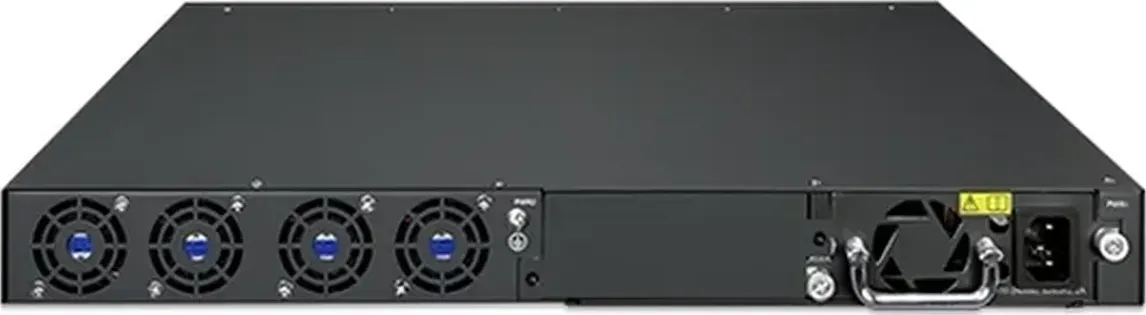

Số khe bộ nguồn

2

Số quạt / khay quạt

4 fixed

Đèn LED

System:; PWR, SYS Green; Ports:; 10G SFP+ interfaces: LNK/ACT, Green; 40G/100G QSFP; Port: LNK/ACT Green

Bộ nhớ Flash

4096MB

Bộ nhớ DRAM

2048MB

Chống tĩnh điện (ESD)

Contact ±6KV, Air ±8KV

Chống sét lan truyền

Differential mode ±2KV, Common mode ±4KV

Kiến trúc chuyển mạch

Store-and-forward

Băng thông chuyển mạch

880Gbps/non-blocking

Thông lượng chuyển tiếp

654Mpps@64bytes

Bảng địa chỉ MAC

132K

Bộ đệm dữ liệu dùng chung

4.5MB

Điều khiển luồng

Back pressure for half duplex; IEEE 802.3x pause frame for full duplex

Khung Jumbo

9KB

Bảng định tuyến

IPv4: 16K; IPv6: 8K

Bảng ARP

IPv4: 16K; IPv6: 8K

Giao thức định tuyến IP

RIP v1/v2; OSPF; BGP (Border Gateway Protocol); Static routing

Định tuyến multicast

PIM-DM and PIM-SM; PIM-SSM; MSDP

Tính năng định tuyến

VRRP; Policy-based routing; Load balance through equal-cost routing; BFD (Bidirectional Forwarding Detection) for OSPF and BGP; GRE tunnel

Giao thức định tuyến IP

RIPng; OSPFv3; BGP4+

Tính năng định tuyến

Manual tunnel; ISATAP tunnel; 6-to-4 tunnel

Chức năng IPv6

ICMPv6, DHCPv6, ACLv6, IPv6 Telnet; IPv6 Neighbor Discovery; Path MTU Discovery

Cấu hình cổng

Port disable/enable; Auto-negotiation 10/100/1000Mbps full and half duplex mode selection; Flow control disable/enable; Bandwidth control on each port; Port loopback detect

VLAN

IEEE 802.1Q tag-based VLAN, IEEE 802.1ad Q-in-Q VLAN stacking/tunneling; GVRP for VLAN management; Private VLAN; Protocol-based VLAN; MAC-based VLAN; IP subnet–based VLAN; Voice VLAN; Multicast VLAN Register (MVR); Up to 4K VLAN groups

Spanning Tree

IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multiple Spanning Tree Protocol (MSTP); BPDU protection, root protection

Mạng vòng (Ring)

ITU-G G.8032 ERPS; EAPS

IGMP Snooping IPv4

IPv4 IGMP v1/v2/v3 snooping; IGMP Fast Leave; IPv4 Querier; IGMP Filtering and IGMP Throttling; IGMP Proxy reporting

MLD Snooping IPv6

IPv6 MLD v1/v2 snooping

Giới hạn băng thông

Ingress and Egress; At least 64Kbps stream

Gộp liên kết

IEEE 802.3ad LACP/static trunk

Chất lượng dịch vụ (QoS)

8 priority queues on all switch ports; Traffic Supervision and Traffic Shaping; Scheduling for priority queues; - Weighted Round Robin (WRR); - Strict priority (SP); - SP+WRR; Traffic classification:; - IEEE 802.1p CoS; - DSCP; - DiffServ; - Precedence; - TOS; - VLAN ID; - IP ACL; - MAC ACL; - Port ACL; Policy-based ingress and egress QoS; 802.1p and DSCP priority remark

Xác thực

IEEE 802.1x port-based network access control; AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS

Danh sách điều khiển truy cập (ACL)

Supports Standard and Expanded ACL; IP-based ACL/MAC-based ACL/Port-based ACL; Time-based ACL; Up to 1K entries

Bảo mật

Port isolation; Port security, supports IP + MAC + port binding; Identification and filtering of L2/L3/L4 based ACL; Defend against DOS or TCP attacks; Suppression of broadcast, multicast and unknown unicast packet; DHCP Snooping, DHCP Option 82; Command line authority control based on user levels

AAA

TACACS+ and IPv4/IPv6 over RADIUS

Kiểm soát truy cập mạng

IEEE 802.1x port-based network access control

Cấu hình hệ thống

Console and Telnet; Web browser; SNMP v1, v2c

Giao diện quản trị bảo mật

SSHv2, SSLv3 and SNMPv3; Maximum 8 sessions for SSH and Telnet connection

Quản lý hệ thống

Supports both IPv4 and IPv6 Protocols; Supports the user IP security inspection for IPv4/IPv6 SNMP; Supports MIB and TRAP; Supports TFTP, FTP; Supports IPv4/IPv6 NTP; Supports RMON 1, 2, 3, 9 groups; Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password; The right configuration for users to adopt RADIUS server’s shell management; Supports CLI, console, Telnet; Supports Security IP safety net management function: avoid unlawful landing at non-restrictive area Supports TACACS+ Supports SPAN, RSPAN

Xếp chồng (stacking)

10 members max.; 2 software-defined ports function as Stacking Up and Down interfaces

Quản lý sự kiện

Supports syslog server for IPv4 and IPv6

SNMP MIB

RFC 1213 MIB-II; RFC 1215 Internet Engineering Task Force; RFC 1271 RMON; RFC 1354 IP-Forwarding MIB; RFC 1493 Bridge MIB; RFC 1643 Ether-like MIB; RFC 1907 SNMPv2; RFC 2011 IP/ICMP MIB; RFC 2012 TCP MIB; RFC 2013 UDP MIB; RFC 2096 IP forward MIB; RFC 2233 if MIB; RFC 2452 TCP6 MIB; RFC 2454 UDP6 MIB; RFC 2465 IPv6 MIB; RFC 2466 ICMP6 MIB; RFC 2573 SNMPv3 notification; RFC 2574 SNMPv3 VACM; RFC 2674 Bridge MIB Extensions

Chứng nhận hợp quy

FCC Part 15 Class A, CE

Tiêu chuẩn tuân thủ

IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab Gigabit 1000BASE-T; IEEE 802.3z Gigabit 1000BASE-SX/LX; IEEE 802.3ae 10Gb/s Ethernet; IEEE 802.3x flow control and back pressure; IEEE 802.3ad port trunk with LACP; IEEE 802.1D Spanning Tree Protocol; IEEE 802.1w Rapid Spanning Tree Protocol; IEEE 802.1s Multiple Spanning Tree Protocol; IEEE 802.1p Class of Service; IEEE 802.1Q VLAN tagging; IEEE 802.1X port authentication network control; IEEE 802.1ab LLDP; RFC 768 UDP; RFC 783 TFTP; RFC 791 IP; RFC 792 ICMP; RFC 2068 HTTP; RFC 1112 IGMP v1; RFC 2236 IGMP v2; RFC 3376 IGMP v3; RFC 2710 MLD v1; RFC 3810 MLD v2; RFC 2328 OSPF v2; RFC 1058 RIP v1; RFC 2453 RIP v2

Điều kiện hoạt động

Temperature: 0 ~ 50 degrees C; Relative Humidity: 10 ~ 85% (non-condensing)

Điều kiện lưu kho

Temperature: -40 ~ 80 degrees C; Relative Humidity: 5 ~ 95% (non-condensing)

XGS-6350-24X2C

PLANET XGS-6350-24X2C – Layer 3 24-Port 10G SFP+ + 2-Port 100G QSFP28 Managed Ethernet Switch
