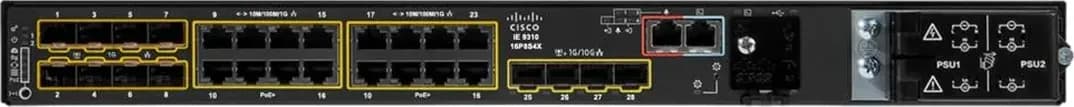

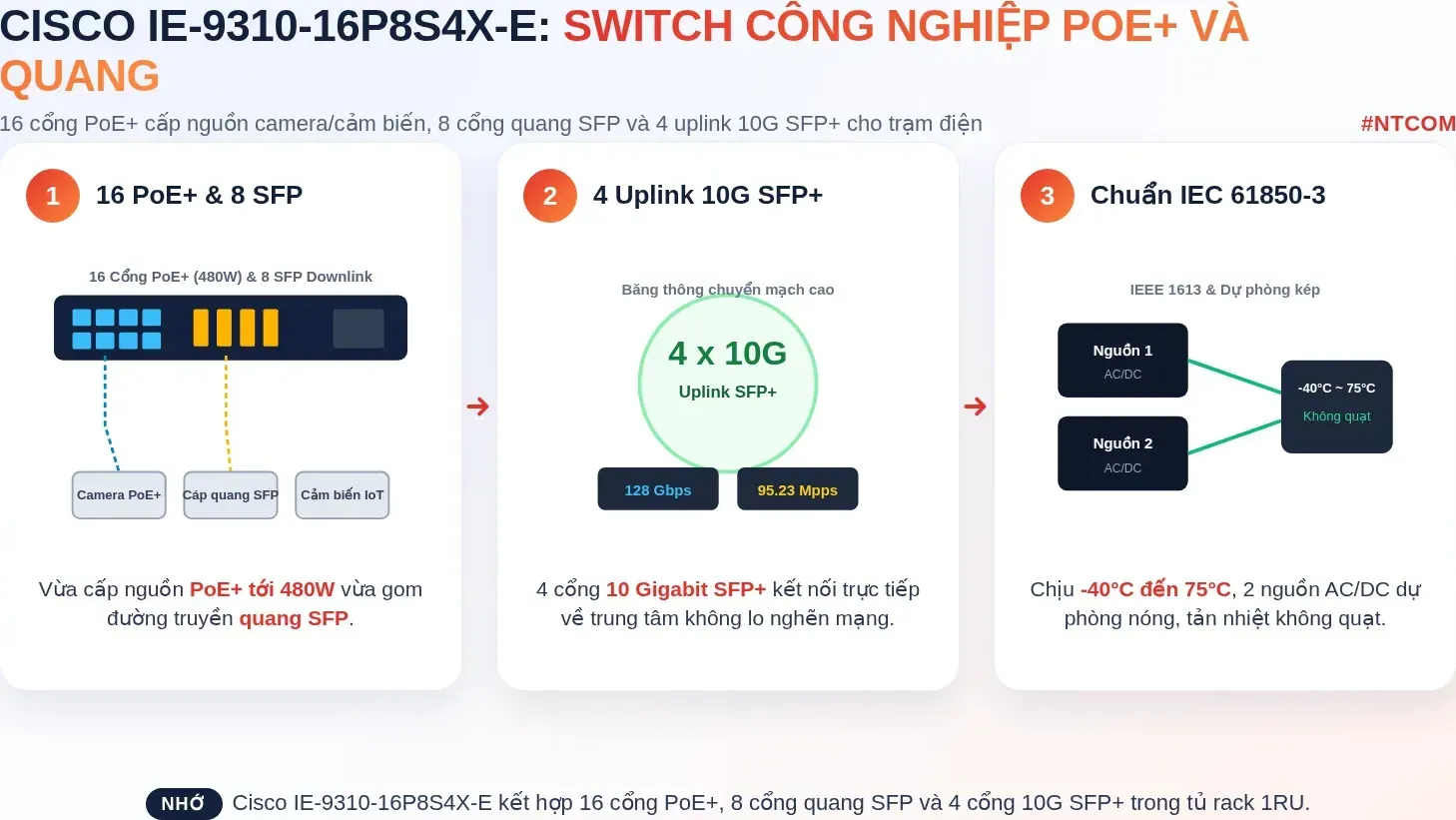

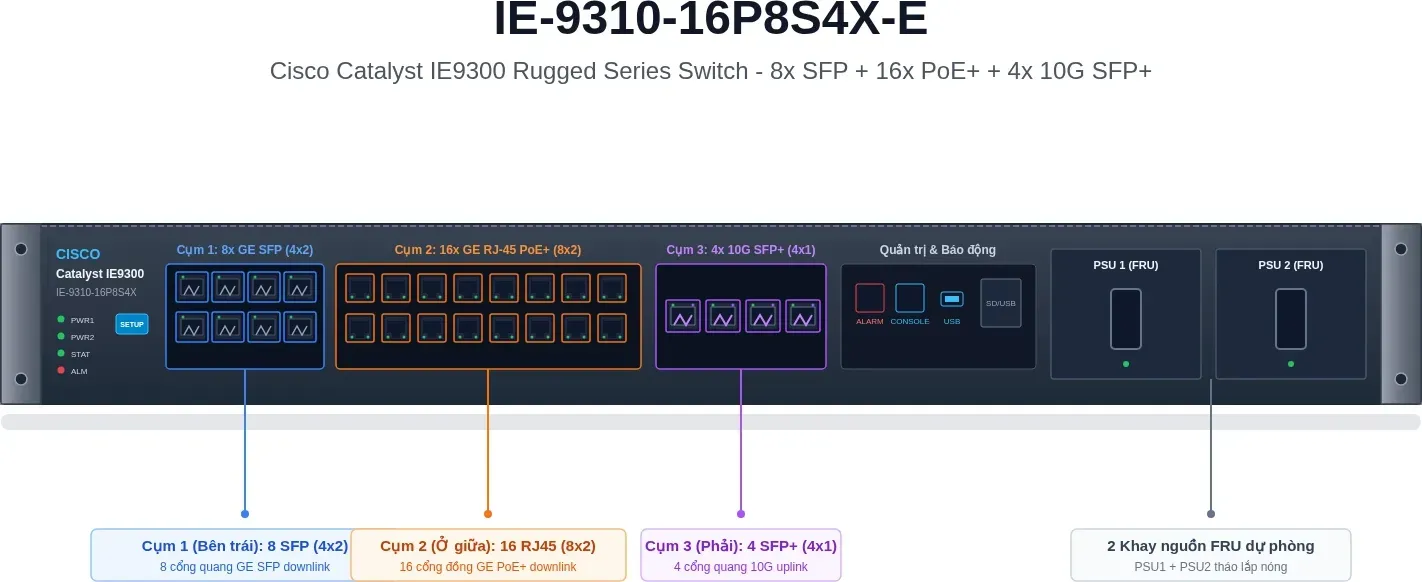

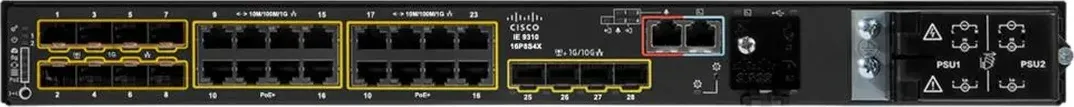

Cisco IE-9310-16P8S4X-E switch công nghiệp PoE+ 16 cổng RJ45 8 SFP

Tổng số cổng

28

Cổng downlink

16 ports 10/100/1000M PoE+ and 8 ports 100/1000M SFP

Cổng uplink (SFP/SFP+)

4 ports 1/10G

Giấy phép phần mềm mặc định

Network Essentials

Bộ nhớ

4-GB DRAM; 8-GB onboard flash memory

Lưu trữ rời

USB, SD card

Cổng cảnh báo

4 dry-contact alarm inputs; 1 dry-contact Form-C relay alarm output

Cổng console

1 RS-232 (via RJ-45), 1 Micro USB

Đầu vào nguồn

Dual AC/DC power inputs

Kích thước (C x R x S)

1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H; 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250; 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400

Trọng lượng

10.6 lb (4.81 kg)

Kiểu lắp đặt

Rack mount

Công suất tiêu thụ

105W

Tốc độ chuyển tiếp

95.23 Mpps

Băng thông chuyển tiếp

64 Gbps

Băng thông chuyển mạch

128 Gbps (switching bandwidth is full-duplex capacity)

Số hàng đợi mỗi cổng

8 egress

Địa chỉ MAC unicast

24000

Nhóm multicast IGMP

1000

Số VLAN ID

4096

Số VLAN hoạt động

1024

Tuyến IPv4 gián tiếp

7000

Tuyến IPv4 trực tiếp

8192

Tuyến IPv6 gián tiếp

3500

Số thực thể STP

128

Số mục ACL (PACL/VACL/RACL)

1536

DRAM

4 GB

Flash khả dụng

2.5 GB

Dung lượng thẻ SD

16 GB

Hỗ trợ SD-Access Fabric Edge

Yes (32 VNs)

Chính sách SGT/DGT

2000

Ràng buộc IPv4 – SGT

10000

Số SVI tối đa

984

Số phiên SXP

200

Số đường hầm GRE

10

Ngân sách PoE – 1 nguồn 150W

50W

Ngân sách PoE – 2 nguồn 150W

170W

Ngân sách PoE – 1 nguồn 250W

150W

Ngân sách PoE – 250W + 150W

260W

Ngân sách PoE – 2 nguồn 250W

350W

Ngân sách PoE – 1 nguồn 400W

300W

Ngân sách PoE – 2 nguồn 400W

480W

Phát xạ điện từ

FCC 47 CFR Part 15 Class A; EN 55032 Class A; VCCI Class A; AS/NZS CISPR 32 Class A; CISPR 11 Class A; CISPR 32 Class A; ICES 003 Class A; CNS15936; EN 300 386; EN 61000-3-2 Harmonic Current Emissions; EN 61000-3-3 Voltage Fluctuations and Flicker; KS C9832

Miễn nhiễm điện từ

EN55024/EN55035; CISPR 24/CISPR35; KS C9835; EN 61000-4-2 Electro Static Discharge; EN 61000-4-3 Radiated RF; EN 61000-4-4 Electromagnetic Fast Transients; EN 61000-4-5 Surge; EN 61000-4-6 Conducted RF; EN 61000-4-8 Power Frequency Magnetic Field; EN 61000-4-10 Oscillatory Magnetic Field; EN 61000-4-11 AC Voltage Dips; EN 61000-4-29 DC Voltage Dips

Tiêu chuẩn ngành

EN 61000-6-2 Industrial; EN 61000-6-4 Industrial; EN 61000-6-1 Light Industrial; EN 61326 Industrial Control; IEEE 1613:2009 Electric Power Stations Communications Networking; IEC 61850-3 Electric Substations Communications Networking; EN 50121-4; EN 50121-3-2:2016 +A1:2019; EN 50125-3:2003; EN 50125-1:2014; AREMA C&S Manual 2019 part 11.5.1 and 11.5.2; IP30 (per EN60529); IEC 61850-9-3 (Power Utility Profile)

Tiêu chuẩn an toàn

Information technology equipment:; UL/CSA 60950-1; EN 60950-1, CB to IEC 60950-1 with all country deviations; UL/CUL 62368-1, CB to IEC62368-1 with country deviations; NOM to NOM-019-SCFI (through partners and distributor); Industrial floor (control equipment):; CB report and certificate to IEC 61010-2-201; UL/CSA 61010-2-201; CSA C22.2, No.142; Hazardous locations:; UL 121201 (Class l, Div 2, groups A-D); CSA 213 (Class l, Div 2, groups A-D); UL/CSA 60079-0, -7 (Class l, Zone 2, Gc/IIC); IEC 60079-0, -7 IECEx test report (Class l, Zone 2, Gc/IIC, ec); EN 60079-0, -7 ATEX certificate (Class l, Zone 2, Gc/IIC, ec)

Môi trường hoạt động

Operating temperature:; -40° to 75°C (-40° to 167°F) (blower-equipped cabinet); -40° to 60°C (-40° to 140°F) (sealed cabinet); -40° to 70°C (-40° to 158°F) (vented cabinet); EN 60068-2-1; EN 60068-2-2; EN 61163; Altitude:; Up to 15,000 feet (4572 m) with no temperature derating; Up to 40,000 feet (12,192 m) with temperature derating down to 25°C (77°F)

Điều kiện lưu kho

Temperature: -40° to 85°C (-40° to 185°F); Altitude: 15,000 feet (4572 m); IEC 60068-2-14

Độ ẩm

Relative humidity of 5% to 95% noncondensing; IEC 60068-2-3; IEC 60068-2-30

Sốc và rung

IEC 60068-2-6 (Vibration); IEC 60068-2-27 (Shock); IEC 60068-2-31 (Shock); IEC 60068-2-32 (Shock); IEC 60068-2-64 (Vibration)

Bảo hành

Five-year limited hardware warranty on all IE9300 product IDs and all Industrial Ethernet (IE) power supplies. See more information in the Warranty section.

Chứng nhận

IEC/ANSI/ISA-62443-4-1-2018; ANSI/ISA-62443-4-2-2018, IEC-62443-4-2-2019; FIPS 140-2; USGv6-r1; Ready Logo Version 5; Common Criteria; ODVA Industrial EtherNet/IP; NEMA TS2:2021

MTBF công bố (giờ)

265,827

IE-9310-16P8S4X-E

Cisco Catalyst IE-9310-16P8S4X-E – Cisco Catalyst IE9300 w/ 16 Ports GE PoE+ and 8 Ports SFP Downlinks and 4 Ports 1/10G SFP+ uplinks, NE

SD-IE-16GB=

16GB SD memory card for IE – 16GB SD memory card for IE

CAB-STK-0.5M=

Cisco 0.5M stack cable – Cisco 0.5M stack cable

CAB-STK-1M=

Cisco 1M stack cable – Cisco 1M stack cable

RM-RGD-19IN=

Spare 19IN rack-mount kit – Spare 19IN rack-mount kit

RM-RGD-23IN=

23IN NEBS rack-mount kit – 23IN NEBS rack-mount kit

RM-RGD-ETSI=

ETSI rack-mount kit – ETSI rack-mount kit

PWR-RGD-AC-DC-H

Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC – Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC

PWR-RGD-AC-DC-H=

Spare Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC – Spare Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC

PWR-RGD-LOW-DC-H

Hazloc Power Supply Low DC 24-60V/10A – Hazloc Power Supply Low DC 24-60V/10A

PWR-RGD-LOW-DC-H=

Spare Hazloc Power Supply Low DC 24-60V/10A – Spare Hazloc Power Supply Low DC 24-60V/10A

PWR-RGD-AC-DC-250

Hazloc Power Supply 100-240VAC/100-250VDC – Hazloc Power Supply 100-240VAC/100-250VDC

PWR-RGD-AC-DC-250=

Spare Hazloc Power Supply 100-240VAC/100-250VDC – Spare Hazloc Power Supply 100-240VAC/100-250VDC

PWR-RGD-AC-DC-400

Hazloc Power Supply 100-240VAC/100-250VDC, 400W – Hazloc Power Supply 100-240VAC/100-250VDC, 400W

PWR-RGD-AC-DC-400=

Spare Hazloc Power Supply 100-240VAC/100-250VDC, 400W – Spare Hazloc Power Supply 100-240VAC/100-250VDC, 400W

IE9300-NW-A=

Network Advantage License for IE9300, Perpetual – Network Advantage License for IE9300, Perpetual

IE9300-DNA-E

Cisco Catalyst Center DNA Essentials license for IE9300 Series – Cisco Catalyst Center DNA Essentials license for IE9300 Series

IE9300-DNA-E-3Y

IE 9300 Cisco Catalyst Center DNA Essentials, 3 Year Term license – IE 9300 Cisco Catalyst Center DNA Essentials, 3 Year Term license

IE9300-DNA-E-5Y

IE 9300 Cisco Catalyst Center DNA Essentials, 5 Year Term license – IE 9300 Cisco Catalyst Center DNA Essentials, 5 Year Term license

IE9300-DNA-E-7Y

IE 9300 Cisco Catalyst Center DNA Essentials, 7 Year Term license – IE 9300 Cisco Catalyst Center DNA Essentials, 7 Year Term license

IE9300-DNA-A

Cisco Catalyst Center DNA Advantage license for IE9300 Series – Cisco Catalyst Center DNA Advantage license for IE9300 Series

IE9300-DNA-A-3Y

IE 9300 Cisco Catalyst Center DNA Advantage, 3 Year Term license – IE 9300 Cisco Catalyst Center DNA Advantage, 3 Year Term license

IE9300-DNA-A-5Y

IE 9300 Cisco Catalyst Center DNA Advantage, 5 Year Term license – IE 9300 Cisco Catalyst Center DNA Advantage, 5 Year Term license

IE9300-DNA-A-7Y

IE 9300 Cisco Catalyst Center DNA Advantage, 7 Year Term license – IE 9300 Cisco Catalyst Center DNA Advantage, 7 Year Term license

DNA-E, DNA-A

Cisco Catalyst Center

DNA-E, DNA-A

Visibility

DNA-E, DNA-A

Day-zero network bring-up automation

DNA-E, DNA-A

SD-Access Extended Node

DNA-E, DNA-A

Industrial Support

DNA-A

LAN Automation

DNA-A

SD-Access Policy Extended Node

DNA-A

SD-Access Fabric Edge Node

DNA-A

Device 360

DNA-A

Patch/SMU Lifecycle Management

DNA-A

Application Visibility and Control (NBAR2)

PWR-RGD-LOW-DC-H

150W

DC 18-75V

Low-voltage DC power source; Compliant for use in hazardous locations

PWR-RGD-AC-DC-H

150W

AC 85-264V or; DC 88-300V

High-voltage AC or DC power source. Compliant for use in hazardous locations

PWR-RGD-AC-DC-250

250W

AC 85-264V or; DC 88-300V

High-voltage AC or DC power source Compliant for use in hazardous locations

PWR-RGD-AC-DC-400

400W

AC 85-264V or; DC 88-300V

High-voltage AC or DC power source Compliant for use in hazardous locations

Layer 2 switching

802.1Q, 802.1w, 802.1ab, 802.1s, 802.3ad, 802.3x, Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Remote Switched Port Analyzer (RSPAN), Switched Port Analyzer (SPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Layer 2 Protocol Tunneling (L2PT), Q-in-Q, Selective Q-in-Q, EtherChannel, VLAN Mapping, Loop Detection Guard

Multicast

IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping

Management

WebUI, MIB, Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, Embedded Event Manager (EEM), Cisco Plug and Play (PnP), Express Setup, Resilient Ethernet Protocol (REP) Zero Touch Provisioning (ZTP)

Security

DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, Full Flexible NetFlow, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP), IEEE 802.1AE MACsec-128, TLS 1.3

Quality of Service (QoS)

802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, egress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing

Layer 3 routing

Static routing, Open Shortest Path First (OSPF – 1000 routes), OSPFv3, Routing Information Protocol (RIP), Policy-Based Routing (PBR)

Industrial Ethernet

Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 2017), Network Time Protocol (NTP) to PTP, Bidirectional Forwarding Detection (BFD), PTP as refclock for NTP, PROFINET, Common Industrial Protocol (CIP), Cisco IOx support, Layer 2 Network Address Translation (L2 NAT), ModBus TCP, ERSPAN, dying gasp

Redundancy

REP rings, REP Fast, HSR, PRP, MRP, PTP over PRP, Fast MRP, PTP over MRP

Automation

YANG, NETCONF, RESTCONF, Cisco Plug and Play (PnP), Day-0 Zero Touch Provisioning (ZTP)
