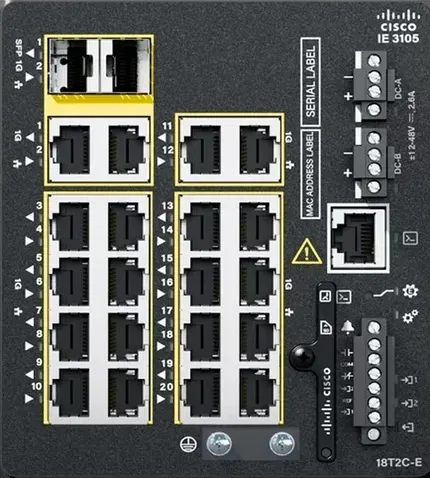

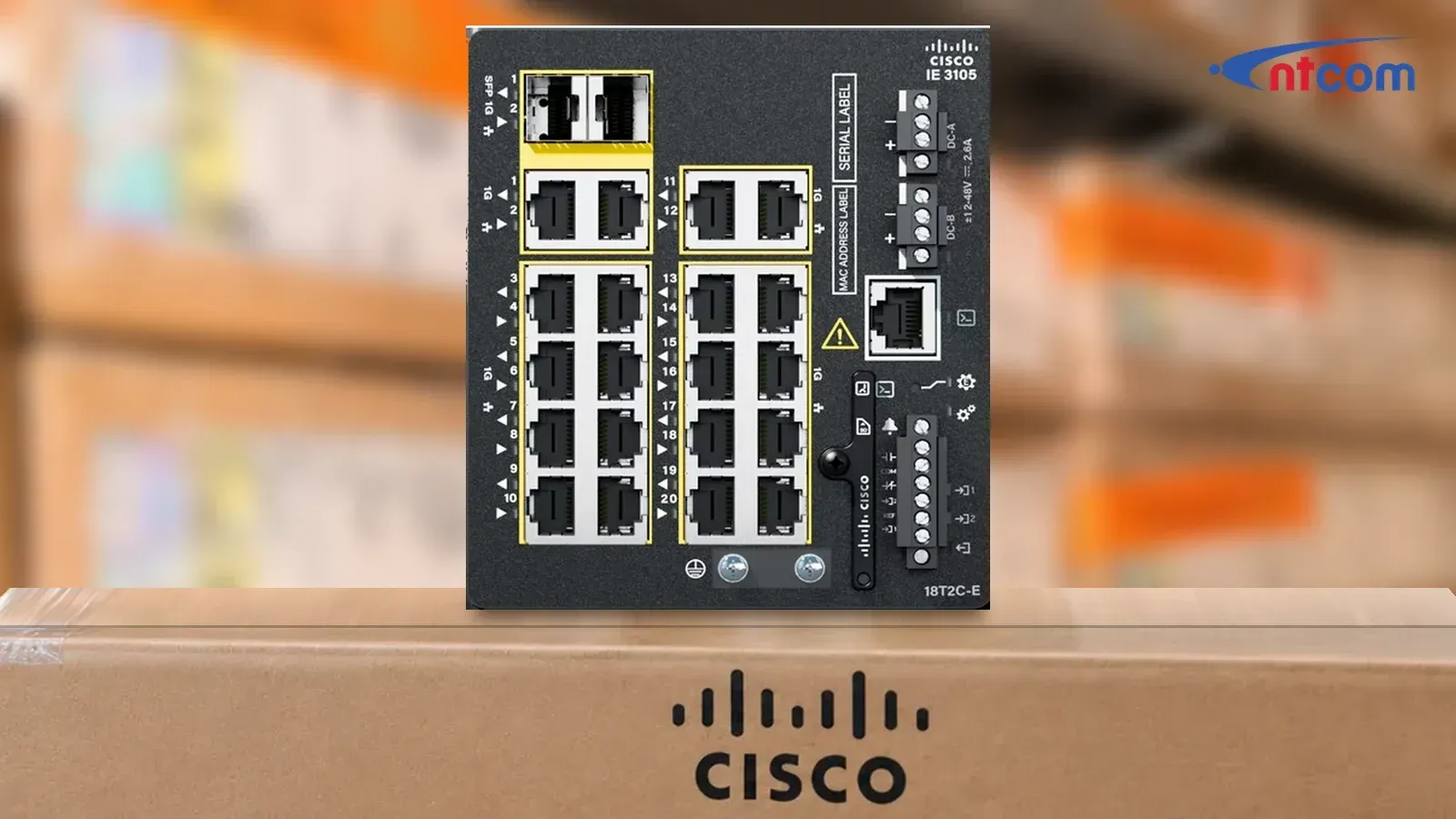

Cisco IE-3105-18T2C-E switch công nghiệp DIN-rail 18 GE 2 Combo L2NAT

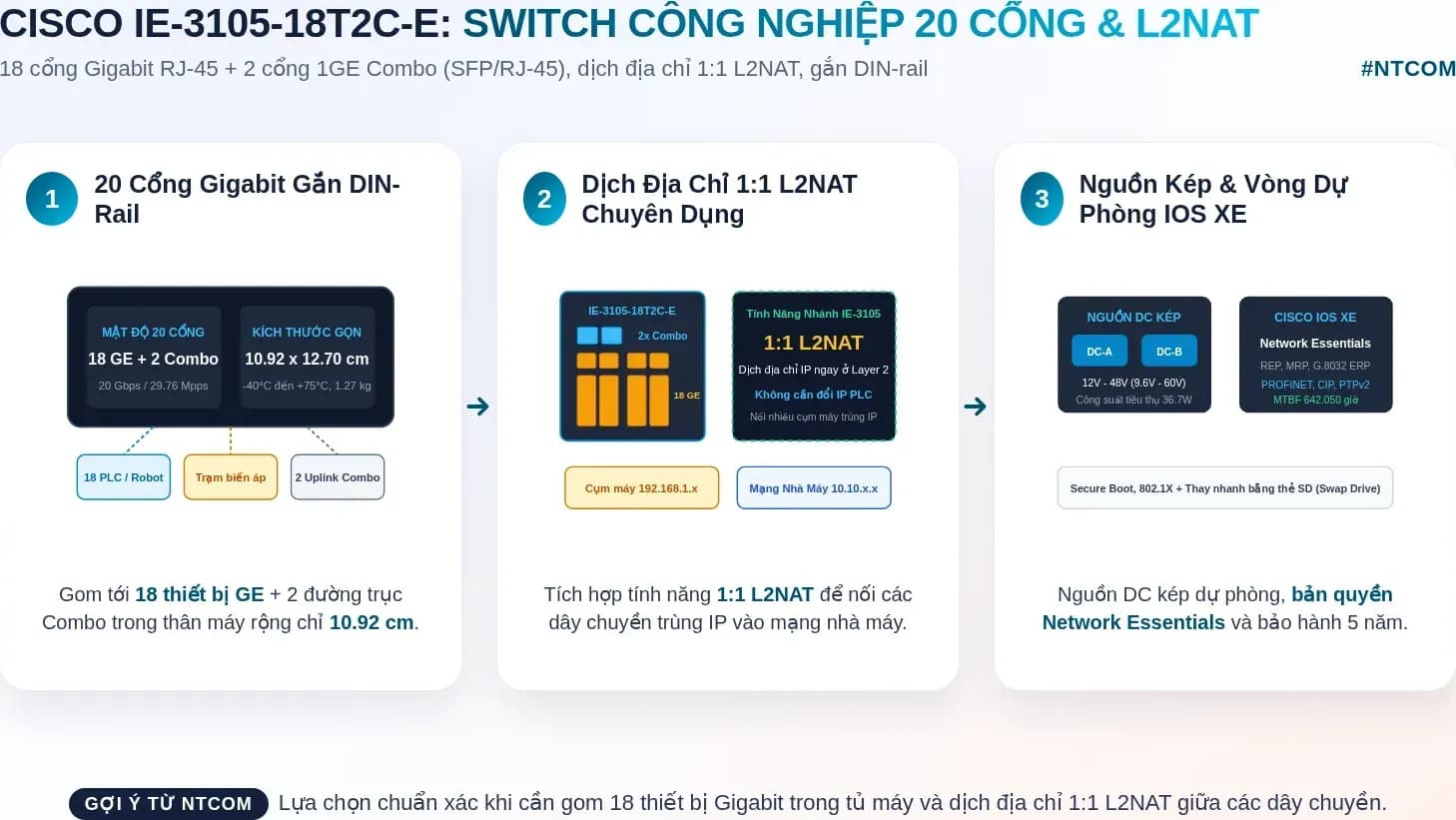

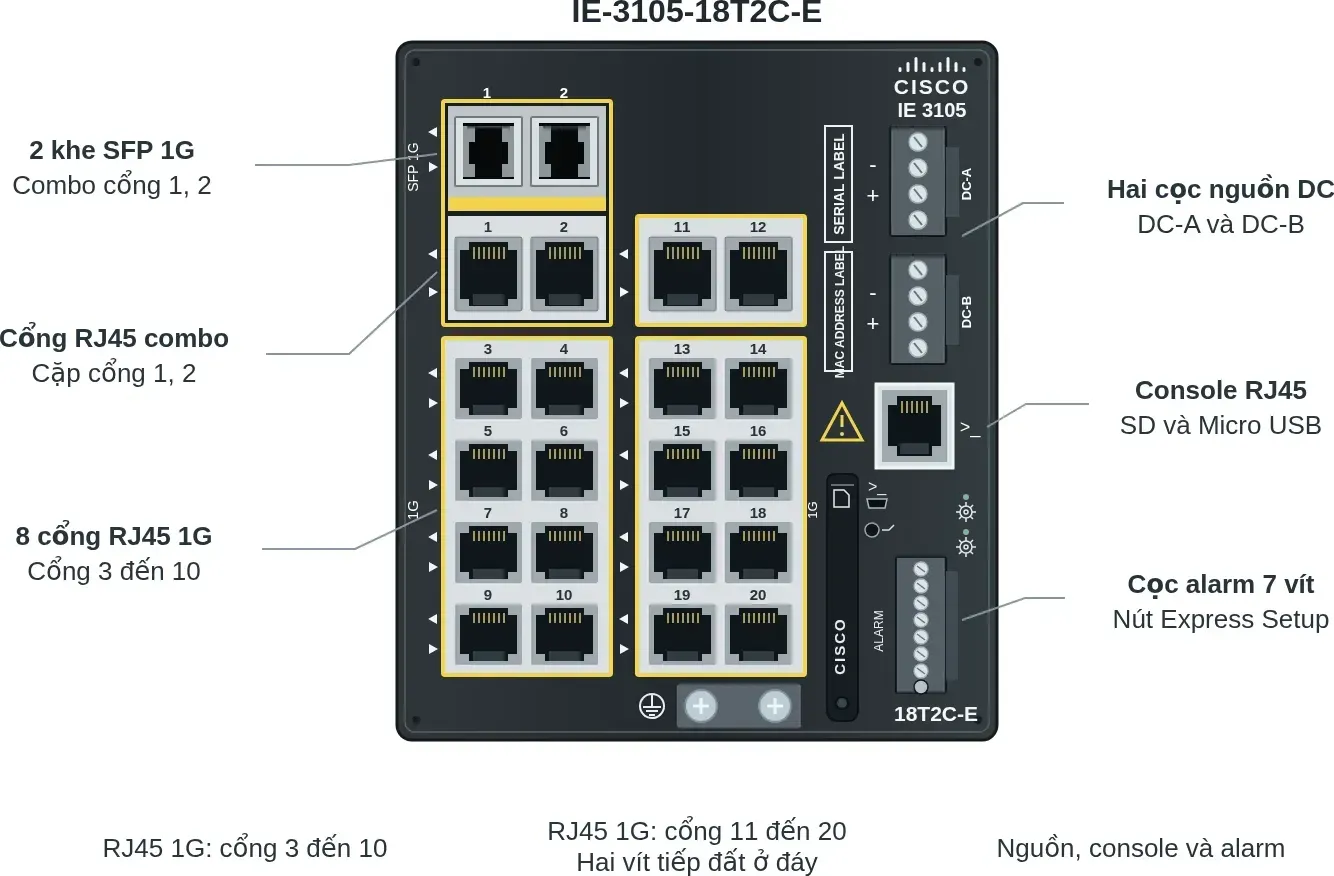

Tổng số cổng

20

10/100/1000 Mbps RJ45 Copper ports

18

1GE SFP ports

-

1GE combo ports

2

Software license

Network Essentials

Removeable Storage

SD card

Cổng cảnh báo

2 dry-contact alarm inputs

Cổng console

1 RS-232 (via RJ-45), 1 Micro USB

Power Input

Dual DC Inputs

PoE Power Budget

Not applicable

Kích thước (C x R x S)

5.00 x 4.30 x 5.08 in. (12.70 x 10.92 x 12.90 cm)

Trọng lượng

2.8 lb (1.27 kg)

Kiểu lắp đặt

DIN Rail

Input Voltage Range

12V to 48V nominal; 9.6V to 60V absolute

Max Current during normal operation

4.2 A with 12V input; 2.6 A with 24V input; 1.3 A with 48V input

Inrush Current

10 A for 7 ms with 12V input; 6 A for 6 ms with 24V input; 6 A for 6 ms with 48V input

Công suất tiêu thụ

36.7W

Tốc độ chuyển tiếp

29.76 Mpps

Băng thông chuyển tiếp

20 Gbps

Number of queues

8 egress

Địa chỉ MAC unicast

8000

Nhóm multicast IGMP

512

VLANs

256

Tuyến IPv4 gián tiếp

2000

Số thực thể STP

128

DRAM

4 GB

Flash khả dụng

1.5 GB

Dung lượng thẻ SD

1 GB, 4 GB, 16 GB

Industrial Automation Control System

IEC 62443-4-1; IEC 62443-4-2

Phát xạ, miễn nhiễm và hợp quy

FCC 47 CFR Part 15 Subpart B Class A; EN 55032A Class A; EN55035; VCCI Class A; AS/NZS CISPR 32 Class A, AS/NZS CISPR35; ICES 003 Class A; BMSI-Taiwan CNS15936; KCC –Korea KS C9832, KS C9835; CE EU; RCM-(Australia/ New Zealand); Brazil Anatel certification; India TEC Certification; IEC/EN/EN61000-4-2 (Electro Static Discharge), 15kV air/8kV contact; IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m with unshielded cables); IEC/EN 61000-4-4 (Fast Transients-4kV power line, 4kV data line); IEC/EN 61000-4-5 (Surge 2KVL-G and 1KVL-L); IEC/EN 61000-4-6 (Conducted Immunity, 10 Vrms); IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity), 1000A/m 1s and 100A/m cont; IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity), 100A/m; IEC/EN 61000-4-29 (Voltage Dips Immunity); IEC/EN 61000-6-1 (Immunity for Light Industrial Environments); IEC/EN 61000-6-2 (Immunity for Industrial Environments); IEC/EN 61000-6-4 (Emission for industrial Environments); EN 61326; RoHS compliance (EU and China)

Tiêu chuẩn ngành

EN 61131-2 (EMC/EMI, environmental, mechanical); Substation / Utility (IEEE 1613, IEC 61850-3); EN50121-3-2; EN50121-4; IP30; ODVA Industrial Ethernet/IP support; PROFINETv2.3 support; NEMA TS2:2021 Traffic Controller Assemblies

Tiêu chuẩn an toàn

Information Technology Equipment:; UL/CSA 60950-1; UL/CSA 62368-1; CB report and certificate to IEC 62368-1 with all country deviations Industrial floor (control equipment):; UL/CSA 61010-2-201; Hazardous Locations:; UL121201(Class l, Div 2, groups A-D); CSA 22.2 No 213 (Class l, Div 2, groups A-D); UL/CSA 60079-0, (Class l, Zone 2, Gc/IIC); IEC 60079-0, -7, IECEx test report (Class l, Zone 2, Gc/IIC); EN 60079-0, -7, ATEX certificate (Class l, Zone 2, Gc/IIC); An external IP54 enclosure is required for hazardous location installations (see hardware install guide / hazardous locations document for more information)

Môi trường hoạt động

Operating temperature:; -40° to 75°C (-40° to 167°F) (blower-equipped cabinet); -40° to 60°C (-40° to 140°F) (sealed cabinet); -40° to 70°C (-40° to 158°F) (vented cabinet); +85°C (type tested for 96 hours); EN 60068-2-1; EN 60068-2-2; EN 61132; Altitude:; Up to 15,000 feet (4,572 m) with no temperature derating; Up to 40,000 feet (12,192 m) with temperature derating down to 25°C (77°F)

Điều kiện lưu kho

Temperature: -40° to 85°C (-40° to 185°F); Altitude: 40,000 feet (12,192 m); IEC 60068-2-14

Độ ẩm

IEC 60068-2-30; Relative humidity: 5% to 95% noncondensing

Sốc và rung

IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine); IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal); IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration); IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration)

Ăn mòn

IEC 60068-2-52 (salt mist, method 3); IEC60068-2-60 (flowing mixed gases)

Automotive

E-Mark (ECE R10)

Railway

EN50125-1: 2014; EN50125-3: 2003

Marine

DNV Certification, IACS UR E10

Bảo hành

Five-year limited hardware warranty on all IE3100 Rugged Series product IDs and all Industrial Ethernet (IE) power supplies. See more information in the Warranty section

MTBF công bố (Telcordia Issue 4)

642,050

IE-3105-18T2C-E

Cisco Catalyst IE-3105-18T2C-E - Catalyst IE3105 w/18 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NE

SD-IE-1GB=

1GB SD memory card for IE - Thẻ nhớ công nghiệp Cisco SD Card dung lượng 1 GB cho dòng IE

SD-IE-16GB=

16GB SD memory card for IE - Thẻ nhớ công nghiệp Cisco SD Card dung lượng 16 GB cho dòng IE

STK-RACK-DINRAIL=

19" DIN Rail mount kit - Bộ giá đỡ lắp đặt switch DIN-rail vào tủ rack 19 inch

IE3100-DNA-E-M

Cisco Catalyst Center Essentials license for IE3100 Series (up to 24 ports) - Giấy phép thuê bao quản lý tập trung Catalyst Center Essentials (tối đa 24 cổng)

IE3100-DNA-E-M-1Y

IE3100 Cisco Catalyst Center Essentials (up to 24 Ports), 1 Year Term license - Giấy phép Catalyst Center Essentials thời hạn 1 năm

IE3100-DNA-E-M-3Y

IE3100 Cisco Catalyst Center Essentials (up to 24 Ports), 3 Year Term license - Giấy phép Catalyst Center Essentials thời hạn 3 năm

IE3100-DNA-E-M-5Y

IE3100 Cisco Catalyst Center Essentials (up to 24 Ports), 5 Year Term license - Giấy phép Catalyst Center Essentials thời hạn 5 năm

IE3100-DNA-E-M-7Y

IE3100 Cisco Catalyst Center Essentials (up to 24 Ports), 7 Year Term license - Giấy phép Catalyst Center Essentials thời hạn 7 năm

IE3100-DNA-E-M-10Y

IE3100 Cisco Catalyst Center Essentials (up to 24 Ports), 10 Year Term license - Giấy phép Catalyst Center Essentials thời hạn 10 năm

PWR-IE50W-AC=

50W

AC 100-240V/1.25A 50-60Hz or DC 125-250V/1.25A

Cấp nguồn cho thân switch (đạt chuẩn công nghiệp đầy đủ)

PWR-IE50W-AC-L=

50W

AC 100-240V/1.2A 50-60Hz

Cấp nguồn cho thân switch (IP20, không dùng cho smart grid / hazloc)

PWR-IE50W-AC-IEC=

50W

AC 90-264V, giắc cắm IEC C14

Cấp nguồn cho thân switch (IP20, không dùng cho smart grid / hazloc)

PWR-IE65W-PC-AC=

65W

AC 100-240V/1.4A 50-60Hz or DC 125-250V/1.0A

Cấp nguồn dư công suất hoặc cấp nguồn cho 2 switch

PWR-IE65W-PC-DC=

65W

DC 24-48VDC/4.5A

Nguồn DC-DC công nghiệp

PWR-IE170W-PC-AC=

170W

AC 100-240V/2.3A 50-60Hz or DC 125-250V/2.1A

Nguồn công suất lớn dùng chung trong tủ điều khiển

PWR-IE170W-PC-DC=

170W

DC 12-54VDC/23A

Nguồn DC-DC công suất lớn

PWR-IE240W-PCAC-L=

240W

AC 100-240V/2.5A 50-60Hz

IP20, không dùng cho smart grid / hazloc

PWR-IE240W-AC-IEC=

240W

AC 100-240V/3.1A, 50-60Hz, giắc cắm IEC C16

Nguồn AC chuẩn giắc cắm IEC C16

PWR-IE480W-PCAC-L=

480W

AC 100-240V/5.0A 50-60Hz

IP20, không dùng cho smart grid / hazloc

PWR-IE400W-AC-IEC=

400W

AC 100-240V/5.0A, 50-60Hz, giắc cắm IEC C16

Nguồn AC công suất lớn chuẩn IEC C16

Layer 2 switching

802.1Q, RSTP (802.1w), LLDP (802.1ab), MSTP (802.1s), LACP (802.3ad), Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Switch Port Analyzer (SPAN), Remote-SPAN (RSPAN), Flow-Based SPAN (FSPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Q-in-Q, EtherChannel

Multicast

IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping

Management

WebUI, MIB, Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, RESTCONF, Embedded Event Manager (EEM), Cisco Network Plug and Play (PnP), Express Setup, Delayless IPDT, Resilient Ethernet Protocol (REP) Zero Touch Deployment (ZTP)

Security

DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP), Security Exchange Protocol (SXP)

Quality of Service (QoS)

802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, Ingress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing

Layer 3 routing

Inter-VLAN routing, static routing

Industrial Ethernet

Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 2017 - dự kiến ở bản cập nhật phần mềm tương lai), Network Time Protocol (NTP) to PTP, Sampled Values

Redundancy

Resilient Ethernet Protocol (REP) ring, Media Redundancy Protocol (MRP), Fast MRP, G.8032 Ethernet Ring Protection (ERP) Protocol version 1, PTP over MRP

Automation

YANG, NETCONF, RESTCONF

Industrial management

Layer 2 switching with 1:1 switching Network Address Translation (L2NAT)

Cisco Catalyst Center

Discovery, topology, inventory, software image management

Có

Visibility

Overall Health dashboard

Có

Day-zero network bring-up automation

Cisco Network Plug-and-Play application

Có

SD-Access Extended Node

SD-Access fabric overlay extension

Có

Industrial Support

MRP Monitoring, REP Configuration
