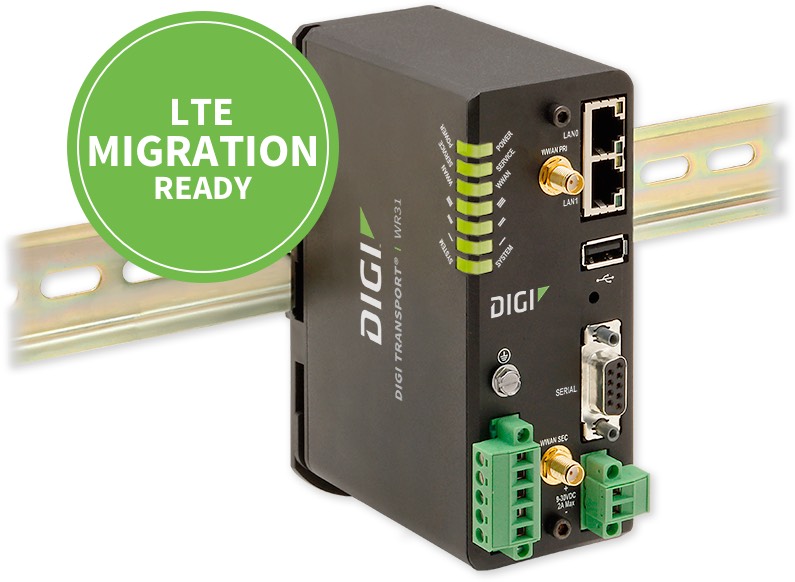

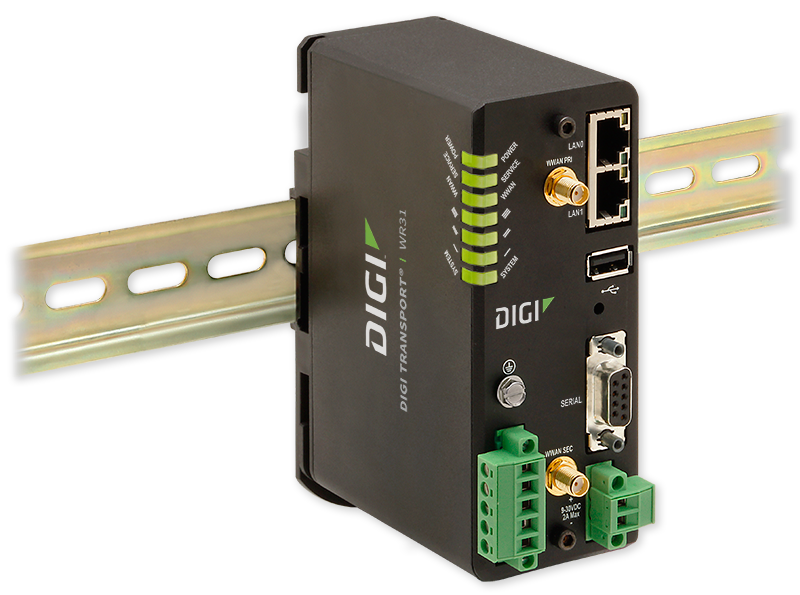

Digi WR31

Digi WR31

Bộ định tuyến 4G LTE thông minh được thiết kế cho các ứng dụng cơ sở hạ tầng và công nghiệp quan trọng

Mã sản phẩm:

WR31

Tình trạng:

Mới 100%
Giá bán:
Liên hệ
Mua ngay

Giao hàng trong 3 ngày

Giao hàng từ Hà Nội

Phí giao hàng:
25.000 VNĐ
Kho hàng: Quận Đống Đa, Hà Nội
Giao đi: Các tỉnh thành
Thanh toán:
001 002 003 004 005
Digi WR31
Digi TransPort WR31 là một bộ định tuyến 4G LTE thông minh được thiết kế cho hiệu suất và độ tin cậy trên một loạt các cơ sở hạ tầng quan trọng và các ứng dụng công nghiệp. Nó cung cấp kết nối an toàn, đáng tin cậy cho các bộ điều khiển công nghiệp, thiết bị tự động hóa quy trình và tài sản lưới điện thông minh trên các trang web của bên thứ ba hoặc các địa điểm từ xa. Các tùy chọn kết nối mạng, đa mạng và phần mềm LTE và HSPA + được xác định bằng phần mềm giúp dễ dàng kết nối. Kết nối thả xuống này cung cấp cho các nhà khai thác một cách để giảm thời gian ngừng hoạt động và các cuộc gọi dịch vụ, đồng thời cũng tăng doanh thu bằng cách đưa các trang web phân tán trực tuyến nhanh hơn.

LÝ TƯỞNG ĐỂ KẾT NỐI:
- Xây dựng và xử lý bộ điều khiển tự động
- Tài sản lưới điện thông minh (mét, công tắc, bộ điều khiển)
- Camera IP và bộ điều khiển truy cập
- Bộ ghi dữ liệu từ xa, lưu lượng kế và thiết bị cảm biến
- Cơ sở hạ tầng Telco
- Giao thông và tắc nghẽn ánh sáng
SPECIFICATIONS Digi TransPort WR31
WIRELESS INTERFACES
CELLULAR
LTE – ANZ/LATAM (L9) LTE-Advanced Cat 6: 700(B28)/850(B5,B18,B19)/900(B8)/1500(B21)/1800(B3)/1900(B39)/2100(B1)/
2600(B7,B38)/2300(B40)/2500(B41)
3G HSPA+: 800/850/900/1700/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
GNSS: 30 channels (16 GPS, 14 GLONASS) simultaneous tracking
LTE – NORTH AMERICA (M8) LTE-Advanced Cat 6: 700(B12,B13,B29)/800(B20,B26)/850(B5)/900(B8)/AWS(B4)/1800(B3)/1900(B2,B25)/
2100(B1)/2300(B30)/2500(B41)/2600(B7)
3G HSPA+: 850/900/AWS/1800/1900/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
GNSS: 30 channels (16 GPS, 14 GLONASS) simultaneous tracking
LTE – NORTH AMERICA (M5) LTE Cat 4: 700(B12,13)/850(B5)/AWS(B4)/1900(B2)
3G HSPA+: 850/1900 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
LTE – EMEA/APAC (M7) LTE Cat 4: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7)
HSPA: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up
LTE 450 – EMEA/APAC (M2) LTE Cat 3: 450(B31)/800(B20)/1800(B3)/2600 (B7)
HSPA+: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 100 Mbps down, 50 Mbps up
GLOBAL HSPA+ (U9) 3G HSPA+: 850/900/1700AWS/1900/2100 MHz
2G EDGE/GPRS: 850/900/1800/1900 MHz
Transfer rate (max): 21 Mbps down, 5.76 Mbps up
CDMA EV–DO 450 MHZ – EMEA (D5) 3G EVDO Rev B: 450 MHz
2G 1XRTT: 450 MHz
Transfer rate (max): 14.7 Mbps down, 5.4 Mbps up
CONNECTORS (2) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Screw-down SIM cover
GNSS (SELECT MODELS) Protocol NMEA 0183 V3.0
Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s
Accuracy Horizontal: < 2 m(50%), < 5 m(90%); Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
SOFTWARE & MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based); SNMP v1/v2c/v3 (user installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS)
MANAGEMENT/ TROUBLESHOOTING TOOLS FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP

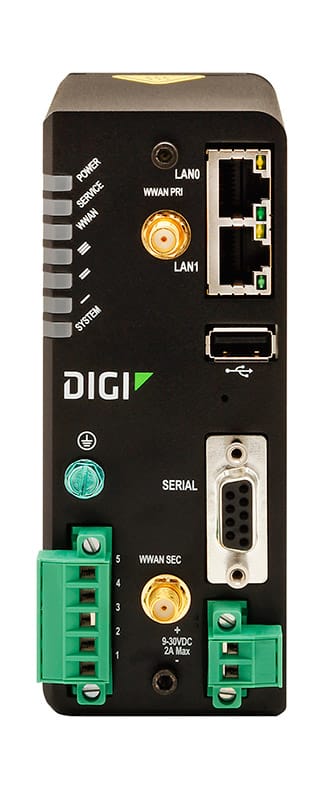

WIRED INTERFACES
ETHERNET
PORTS (2) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL
PORTS (1) DB-9; DCE
STANDARD RS-232/422/485
SIGNAL SUPPORT TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
FLOW CONTROL Software (XON/XOFF), hardware supported

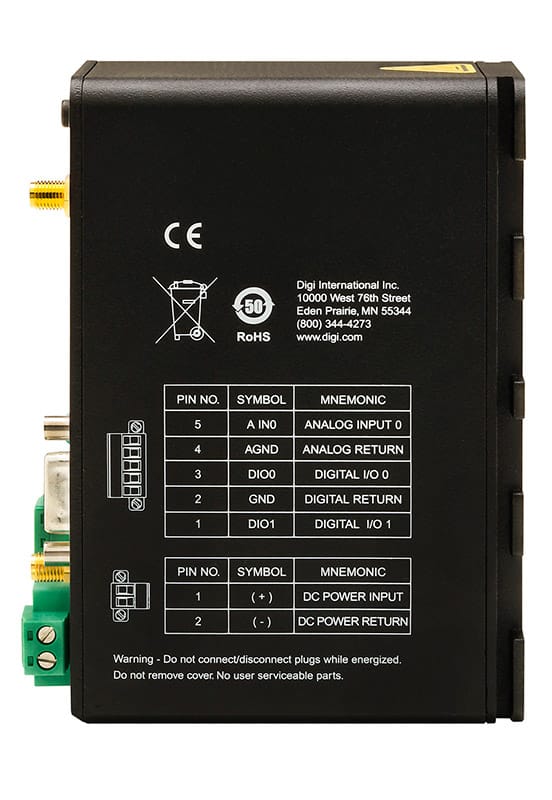

I/O
CONNECTOR 5-pin screw down terminal block
DIGITAL 0-30 VDC, 200 mA max.; (2) I/O, software selectable
ANALOG (1) analog I/O; 4-20 mA or 0-10 V, software selectable; 12 bit resolution
USB
PORTS (1) USB 2.0 Type A
PHYSICAL

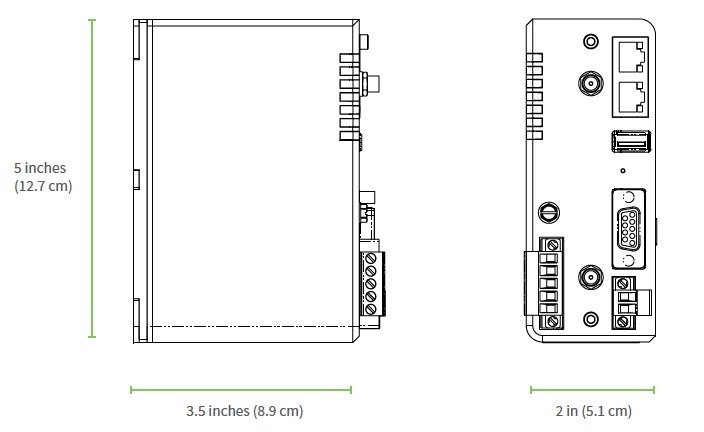

DIMENSIONS (L X W X H) 12.7 cm x 8.9 cm x 5.1 cm (5 in x 3.5 in x 2 in)
WEIGHT .5 kg (1.1 lb.)
STATUS LEDS Power, service, WWAN, 3x signal strength, user programmable
ENCLOSURE/RATING Aluminum / IP30

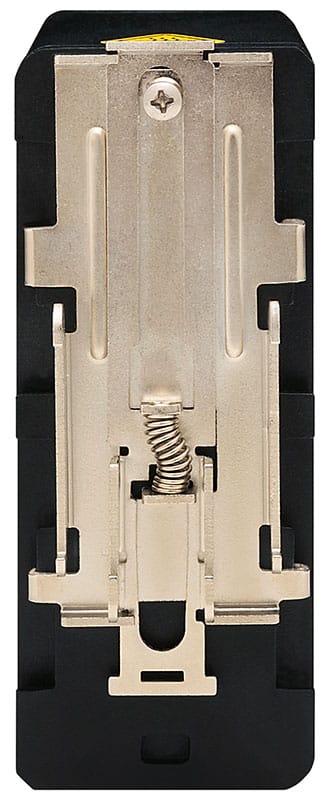

MOUNTING DIN rail mount included
POWER REQUIREMENTS
POWER INPUT 9 – 30 VDC, 18 W min power source required
POWER CONNECTOR Screw down removable terminal block
POWER CONSUMPTION 4 W typical (Idle); 12 W typical (Peak Tx/Rx)
ENVIRONMENTAL
HAZARDOUS (CLASS 1 DIV 2) Yes
OPERATING TEMPERATURE -34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F)
STORAGE TEMPERATURE -40° C to 85° C (-40° F to 185° F)
ETHERNET ISOLATION 1.5 kV RMS
SERIAL PORT PROTECTION (ESD) 15 kV
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR PTCRB
SAFETY Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15
Ordinary locations: UL 60950-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition
ATEX standards: Protection method  II 3 G Ex nA IIC T4 Gc
EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1
IECEX STANDARDS US/UL/ExTR17.0077/00
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
WARRANTY
PRODUCT WARRANTY 3-year + Digi Foundations*

*Digi Foundations can extend the standard three-year warranty to a Limited Lifetime Warranty that provides replacement with a new or similar Digi product for a period of five years from the date of purchase. After five years from the purchase date, the warranty value will revert to a 40 percent credit towards the MSRP of an equivalent product from Digi.





ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTP, HTTPS, FTP, SFTP, SSL, SNMP, SNMP (v1/v2c/v3), SSH, Telnet and CLI for web management; remote management via Digi Remote Manager; SMS management, protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS, Dynamic DNS client compatible with BIND9/No-IP/DynDNS
SECURITY/VPN IP filtering, stateful inspection firewall with scripting, address and port translation; VPN: IPSec with IKEv1, IKEv2, NAT Traversal; SSL, SSLv2, SSLv3, FIPS 197, Open VPN client and server; PPTP, L2TP; (5) VPN tunnels (not upgradable); cryptology: SHA-1, MD5, RSA; encryption: DES, 3DES and AES up to 256-bit (CBC mode for IPsec); authentication: RADIUS, TACACS+, SCEP for X.509; certificates; content filtering (via 3rd party); MAC address filtering; VLAN support
ROUTING/FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; multicast routing; routing protocols: PPP, PPPoE, RIP (v1, v2) OSPF, SRI, BGP, iGMP routing (multicast); IP failover: VRRP, VRRP+TM; automatic failover/failback to second GSM network/standby APN
OTHER PROTOCOLS DDHCP; Dynamic DNS client compatible with BIND9/No-IP/DynDNS; QoS via TOS/DSCP/WRED; Modbus UDP/TCP to serial; X.25 including XOT, SNA/IP, TPAD and PAD; protocol switch; Modbus bridging for connecting diverse field assets
